MPO Loopback & Product Applications

2025年5月28日

MPO (Multi-Fiber Push-On) technology has become a critical component in today’s high-density fiber optic networks. Among the various MPO products, MPO loopback modules play a vital role in testing and diagnostics, while MPO trunk and breakout cables enable efficient and scalable connectivity.

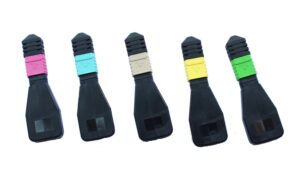

MPO Loopback Modules

MPO loopback modules are passive devices designed to facilitate testing of optical transceivers and fiber links in network environments. By looping the transmitted signal back into the receiver port, they enable quick and effective testing of link integrity, continuity, and performance.

Key Features:

Compatible with QSFP, QSFP28, and other MPO-based transceivers

Available in 8, 12, or 24 fiber configurations

Low insertion loss and high return loss

Common Use Cases:

Transceiver testing during manufacturing or installation

Bit error rate (BER) testing

Network commissioning and troubleshooting

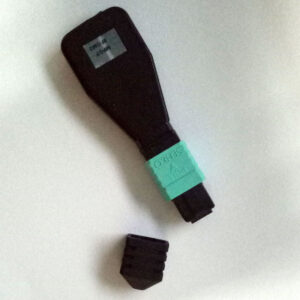

Example: An MPO 12F OM3 loopback module is often used to test QSFP+ 40G ports during system diagnostics, ensuring fast and reliable verification in data center environments.

MPO Trunk and Breakout Cables

MPO trunk cables provide high-density connections between data center racks, switches, and patch panels. They are ideal for backbone cabling where fast deployment and high fiber count are essential.

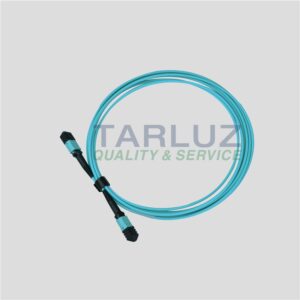

Example: An MPO 12F OM3 trunk patch cable connects core switches within a server room, supporting 40G or 100G transmission. These cables can also be used in testing environments to quickly link devices under test to diagnostic equipment.

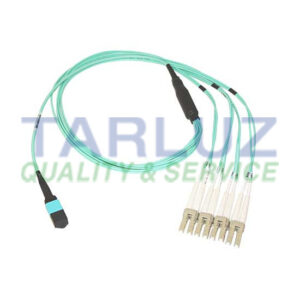

MPO breakout cables, on the other hand, split a single MPO connector into multiple LC connectors, enabling direct connections to standard transceivers or devices.

Advantages:

High fiber density with reduced cable bulk

Easy plug-and-play deployment

Suitable for 40G/100G/400G data center applications

Applications Across Industries:

Cloud computing and hyperscale data centers

Enterprise networking

Telecom and broadband service providers

Test and measurement environments

In conclusion

MPO loopback modules and related MPO products are indispensable for building and maintaining efficient, scalable, and high-performance optical networks. Whether for testing or deployment, they ensure reliability and speed in demanding network environments. More information refer to the Tarluz.
